| General | ||
|---|---|---|
| Power Requirements | 12 V DC (10.8 V to 13.2 V), DC 42 V to 57 V (Camera Input, PoE++ power supply) | |
| Current Consumption | 4.0 A (XLR IN connector), 1.2 A (PoE++ power supply) | |
| Ambient Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) | |
| Ambient Operating Humidity | 20 % to 90 % (no condensation) | |
| Storage Temperature | –20 °C to 50 °C (–4 °F to 122 °F) | |
| Mass | Approx. 4.2 kg (9.24 lb) (excluding mount bracket) | |
| Dimensions (W x H x D) | 213 mm x 267 mm x 219 mm (8-3/8 inches x 10-1/2 inches x 8-5/8 inches) (excluding protrusions, direct ceiling mount bracket) |
|

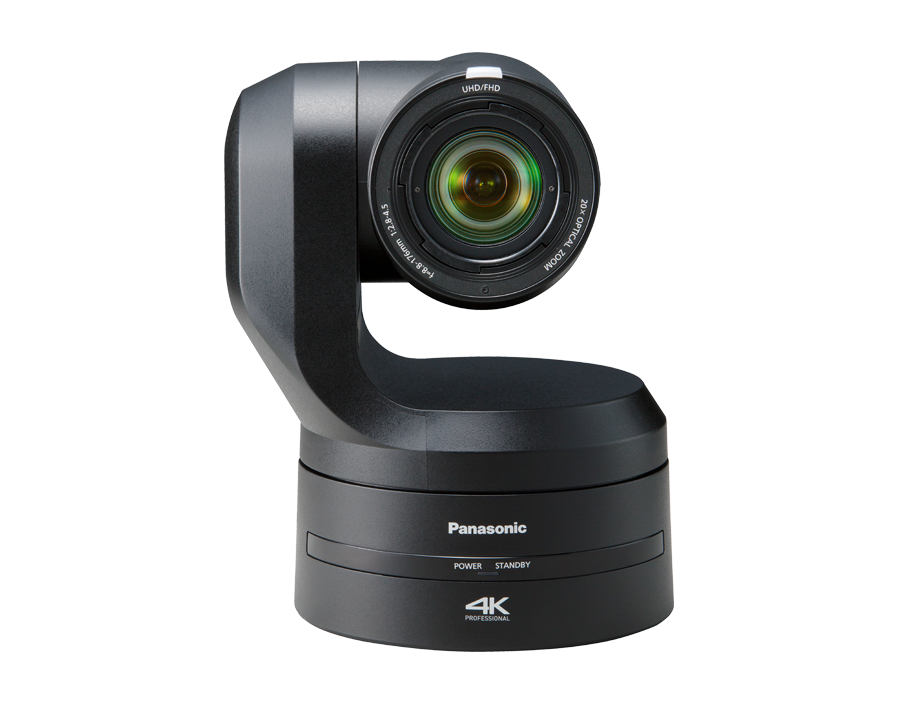

| Finish | AW‑UE150WP/AW‑UE150WE: Pearl white AW‑UE150KP/AW‑UE150KE: Black |
|
| Controller Supported | AW-RP150GJ, AW-RP50*1, AK-HRP1000GJ*1 | |
| Camera Unit | ||
| Imaging Sensors | 1-type 4K MOSx1 | |
| Effective Pixels | 20,180,000 pixel | |
| Lens | Motorized Optical 20x zoom, F2.8 to F4.5 [f=8.8 mm (11/32 inches) to 176.0 mm (6‑15/16 inches); 35 mm (1‑3/8 inches) equivalent: 24.5 mm (31/32 inches) to 490.0 mm (19‑9/32 inches)] |
|
| Zoom | • Optical zoom: 20x • i.Zoom: UHD 24x, FHD 32x • Digital zoom: 10x |
|
| Conversion Lens | Not supported | |
| Angle of View Range | Horizontal angle of view: 75.1° (wide) to 4.0° (tele) Vertical angle of view: 46.7° (wide) to 2.3° (tele) Diagonal angle of view: 82.8° (wide) to 4.6° (tele) |
|
| Optical Filter | Through, 1/4, 1/16, 1/64, IR through (IR through is used as “Night mode”) | |
| Focus | Switching between auto and manual | |
| Focus Distance | Entire zooming range: 1000 mm (3.3 ft) Wide end: 100 mm (0.33 ft) |
|
| Color Separation Optical System | 1MOS | |
| Standard Sensitivity | F9, 2000 lx (When normal mode is selected) | |
| Minimum Illumination | 2 lx (F2.8, 59.94p, 50IRE, 42 dB, without accumulation) | |
| S/N | 60 dB or more | |
| Horizontal Resolution | 2,000 TV lines Typ (Center area) | |
| Gain Selection | Auto, -3 dB to 36 dB*2 Super Gain function equipped : +37 dB to 42 dB |
|
| Frame Mix*3 | 0 dB, 6 dB, 12 dB, 18 dB, 24 dB | |
| Electronic Shutter Speed | 59.94p/59.94i | 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
| 29.97p | 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 | |
| 23.98p/24p | 1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 | |
| 50p/50i | 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 | |
| 25p | 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 | |
| Synchro Scan | 59.94p/59.94i | 60.00 Hz to 7200 Hz |
| 29.97p | 30.00 Hz to 7200 Hz | |
| 23.98p/24p | 24.00 Hz to 7200 Hz | |
| 50p/50i | 50.00 Hz to 7200 Hz | |
| 25p | 25.00 Hz to 7200 Hz | |
| Gamma | HD / FILMLIKE1 / FILMLIKE2 / FILMLIKE3/ FILM REC / VIDEO REC / HLG | |
| White Balance | ATW : 3200K, 5600K ATW Speed : Normal / Slow / Fast AWB : AWB-A / AWB-B VAR (selectable between 2000K and 15000K by designating a value) |
|
| Chroma Amount Variability | OFF, –99 % to 99 % | |
| Scene File | Scene1, Scene2, Scene3, Scene4 | |
| Output Format | 4K | 2160/59.94p, 2160/50p, 2160/29.97p*4, 2160/25p*4, 2160/24p*4, 2160/23.98p*4 |
| HD | 1080/59.94p, 1080/50p, 1080/29.97p*4, 1080/29.97PsF, 1080/25p*4, 1080/25PsF, 1080/23.98p*5, 1080/24p*4, 1080/23.98p*4, 1080/23.98PsF, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p |
|
| Synchronization System | ||
| Internal/External synchronization (BBS/Tri-level sync) | ||
| Input | ||
| Input Connector | DC 12 V IN, G/L IN (BNC) • BBS (Black Burst Sync), tri-level sync supported |
|
| Output | ||
| Video Output | HDMI | HDMI 2.0 standard 4:2:2/10bit • HDCP is not supported. • Viera Link is not supported. |
| 12G-SDI OUT | SMPTE 2082‑1 standard / 75 Ω (BNC x 1) | |
| 3G-SDI OUT | SMPTE424M/SMPTE292 / 75 Ω (BNC x 1) • Level-A/Level-B supported |
|
| MONI OUT | SMPTE292 / 75 Ω (BNC x 1) | |
| Optical Fiber | SFP+ standard • This unit does not support input by optical signals |
|
| Input/Output | ||
| Input/Output Connector | LAN | LAN connector for IP control (RJ‑45) |
| RS-422 | CONTROL IN RS-422A (RJ‑45) | |
| MIC/LINE input | AAC compatible (compatible with IP only) ø 3.5 mm stereo mini jack Input impedance: High impedance • During MIC input Supported mic: Stereo mic (plug-in power, on/off switching via menu) Supply voltage: 2.5 V ± 0.5 V Mic input sensitivity: Approx. –40 dBV ± 3 dBV (0 dB=1 V/Pa, 1 kHz) • During LINE input Input level: Approx. –10 dBV ±3 dBV |
|
| Pan-tilt Head Unit | ||
| Camera/Pan-tilt Head Control | IP connecting cable | LAN cable*6*7: (category 5e or above, straight cable / crossover cable), max. 100 m (328 ft) |
| AW protocol connecting cable | LAN cable*6: (category 5e or above, straight cable), max. 1000 m (3280 ft) | |
| Installation Method | Stand-alone (Desktop) or suspended (Hanging)*8 | |
| Pan/tilt Operation Speed | Minimum speed 0.08°/s Maximum speed 60°/s or higher*9 • Maximum speed is 180°/s in high-speed mode |
|
| Panning Range | ±175° | |
| Tilting range | –30° to 210°*10 | |
| Quietness | NC35 or less | |
| Supported Operating Systems and Web Browsers*11 | ||
| Supported Operating Systems and Web Browsers | Windows | Microsoft® Windows® 7, 10 Windows® Internet Explorer® 11 (64‑bit/32‑bit) Microsoft Edge Google Chrome |
| Mac | Mac OS 10.13, Mac OS 10.12, Mac OS 10.11 Safari 11, Google Chrome |
|
| iPhone / iPad | iOS 11.4.1 Google Chrome |
|
| IP Streaming | ||
| Image Streaming Mode | JPEG (MJPEG), H.264, H.265 | |
| Image Resolution | 3840×2160, 1920×1080, 1280×720, 640×360, 320×180 | |
| Image Transmission Setting (JPEG) | Frame Rate: Maximum 30 fps Image quality (Fine / Normal) |
|
| Image Transmission Setting (H.264) | Transmission Type | Unicast port (AUTO) Unicast port (MANUAL) Multicast port |
| Transmission Priority | Constant bit rate Frame rate Best effort |
|
| Frame Rate | [60Hz] 5fps / 15fps / 30fps / 60fps (UHD: 30fps, 60fps) [50Hz] 5fps / 12.5fps / 25fps / 50fps (UHD: 25fps, 50fps) |
|
| Max Bit Rate | HD: 512kbps / 768kbps / 1024kbps / 1536kbps / 2048kbps / 3072kbps / 4096kbps / 6144kbps / 8192kbps / 10240kbps / 12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbps / 32768kbps / 40960kbps / 51200kbps / 76800kbpsUHD: 12800kbps / 25600kbps / 51700kbps / 76800kbps |
|
| Image Transmission Setting (H.265) | Transmission Type | Unicast port (AUTO) Unicast port (MANUAL) Multicast port |
| Frame Rate | [60Hz] 30fps [50Hz] 25fps |
|
| Max Bit Rate | 8192kbps / 12800kbps / 25600kbps / 51200kbps / 76800kbps | |
| Audio Compression Type | AAC-LC, 48 kHz / 16 bit / 2ch | |
| Supported Protocol | IPv6 | TCP / IP, UDP / IP, HTTP, HTTPS, DNS, NTP, DHCPv6, RTP, MLD, ICMP, ARP, RTMP, SRT |
| IPv4 | TCP / IP, UDP / IP, HTTP, HTTPS, RTSP, RTP / RTCP, DHCP, DNS, DDNS, NTP, UPnP, IGMP, ICMP, ARP, RTMP, RTMPS, SRT | |
| Other Function | ||
| NDI support*12 | NDI®|HX version 2 | |
| Tally LED Display Color | red / green | |
